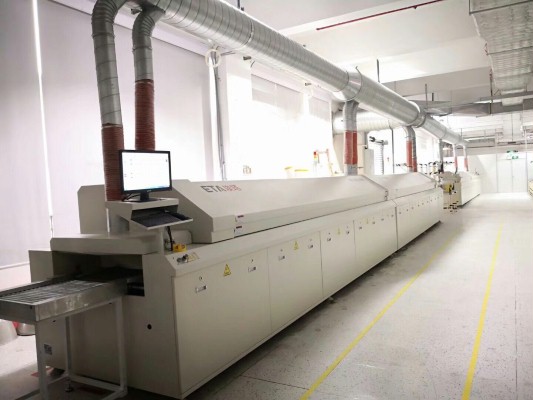

Lead Free SMT Reflow Soldering Oven
❙ Introduce
1. Control System
Computer or Instrument control, make sure machine working steadily.
2. Hot Air Heating System
Both top and bottom zones hot air heating,good heater compensatory,High thermal efficiency,energy saving,speedy heating,suitable for soldering components like BGA,CSP etc.Special forced hot air circulation structure makes PCB and components heat evenly, Temperature Accuracy ± 1.5 °C, room temperature settling time less than 20 minutes.
3. Cooling System
Independent cooling area ensures the low temperature when PCB comes out.
4. Transmission system
Use imported motors, speed adjuster, smoothly running, adjustable speed at 0-2000mm/min.
❙ Specification
| Model | A600 | A600D | A800 | A800D |
| Dimension (L*W*H)mm | 3400x800x1350 | 4150x850x1350 | ||
| Weight | Approx.739KG | Approx.850KG | ||
| Number Of Heating Zones | Top6/Bottom6 | Top8/Bottom8 | ||
| Length Of Heating Zones | 2300mm | 2600mm | ||
| Power For Warm Up | 12kw | 15kw | ||
| Power Consumption | 5kw | 6kw | ||
| Transmission Agent | Mesh | Mesh+Rail | Mesh | Mesh+Rail |
| Fixed Rail Side | N/A | Front (Option:Rear) | N/A | Front (Option:Rear) |
| Control System | Instrument | PLC+Computer | Instrument |
PLC+Computer |
